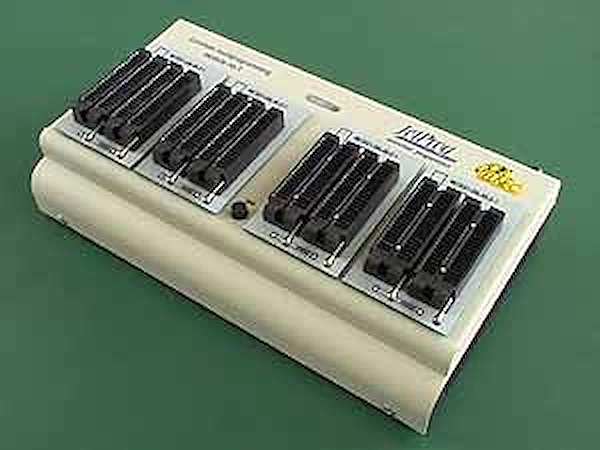

JetProg - multiprogramming system

Discontinued product. Replacement: Elnec Multiprogramming systems.

MCS-51 series microcontrollers multiprogramming

Short description:

  • MCS-51 series microcontrollers multiprogramming solution based on the JetProg programmer
  • supports MCS-51 microcontrollers up to DIL40(PLCC44)
  • programs up to 8 devices simultaneously
  • available submodules for different packages
  • true low voltage support down to 1.8V
  • high throughput
  • comfortable control program, MS Windows (95/98/Me/NT/2000/XP) compatible

MCS-51 series microcontrollers multiprogramming system comprise of

Features

General

  • The Common multiprogrammimng module no.1 with MCS51 socket submodules present - attached to JetProg programmer - high throughput manual operated MCS51 microcontrollers multiprogramming solution, suitable for medium volume production application.
  • This MCS-51 series microcontrollers multiprogramming system provides very competitive price but excellent hardware design for reliable programming.

Hardware

  • The MCS-51 series microcontrollers multiprogramming system supports MCS51 compatible microcontrollers of various manufacturers, based on both EPROM and Flash technology.
  • The replaceable socket submodules package enable different package type support.
  • Optimized advanced pindriver deliver programming performance without overshoot or ground bounce for all memory technologies. Pin drivers operate down to 1.8V so you'll be ready to program the full range of today's advanced low-voltage devices.
  • The MCS-51 series microcontrollers multiprogramming system performs programming verification at the marginal level of supply voltage, which, obviously, improves programming yield, and guarantees long data retention.

Software

  • The MCS-51 series microcontrollers multiprogramming is driven by an easy-to-use WIN-95/98/2000/XP compatible control program with pull- down menu, hot keys and on-line help. Selecting of device is performed by its class, by manufacturer or simply by typing a fragment of vendor name and/or part number.
  • Standard device-related commands (read, blank check, program, verify, erase) are boosted by some test functions (insertion test, signature-byte check).
  • All known data formats are supported. Automatic file format detection and conversion during load of file.

Hardware

Multiprogramming modules

Common multiprogramming module no.1

  • advanced specialized pindriver (8x), compatible for multiprogramming of more chip types (EPROM/EEPROM, MCS51, PICmicro, ...)
  • pindrivers are independent, therefore defective chip haven't influence to another programmed chips
  • perfect ground and necessary supply/programming voltage can be applied independently to each socket of submodule
  • current limitation for each socket, overcurrent shutdown, power failure shutdown
  • banana hole for ESD wrist straps
  • insertion test
  • ord. no.: 70-0151 (discontinued)

Common multiprogramming module no.1

Programming sockets - submodules

MCS51-DIL40-2-1 socket submodule

  • fits for standard-pinout MCS-51 in DIL40 package
  • 2x ZIF DIL40 sockets
  • operation life of ZIF sockets - 25.000 actuations
  • ord. no.: 70-0148 (discontinued)

MCS51-DIL40-2-1 socket submodule
MCS51-PLCC44-2-1 socket submodule

  • fits for standard-pinout MCS-51 in PLCC44 package
  • 2x ZIF PLCC44 sockets
  • operation life of ZIF sockets - 10.000 actuations
  • ord. no.: 70-0173 (discontinued)

MCS51-PLCC44-2-1 socket submodule

Software

Screen DIL
  • Algorithms: only manufacturer approved or certified algorithms are used. Custom algorithms are available at additional cost.

  • Algorithm updates: software updates are available approx. every 2 weeks, free of charge.

  • Main features: revision history, session logging, on-line help, device and algorithm information.

Device operations

  • standard:
    • intelligent device selection by device type, manufacturer or typed fragment of part name
    • automatic ID-based selection of EPROM/Flash EPROM
    • blank check, read, verify
    • program
    • erase
    • checksum
  • security:
    • insertion test, reverse insertion check
    • ID byte check
  • special:
    • auto device serial number increment
    • statistic
    • count-down mode

Buffer operations

  • view/edit, find/replace
  • fill/copy, move, byte swap, word/dword split
  • checksum (byte, word)
  • print

File load/save

  • no download time because programmer is PC controlled
  • automatic file type identification
    Supported file formats
    • unformatted (raw) binary
    • HEX: Intel, Intel EXT, Motorola S-record, MOS, Exormax, Tektronix, ASCII-SPACE-HEX

Device support

  • EPROM based MCS51 chips: 87C5x series
  • Flash based MCS51 chips: 89C5x series
  • supported manufacturers: AMD, Atmel, Dallas, ICSI, Intel, ISSI, Philips, SST, Signetics, Winbond, ...
  • Check please the list of all supported devices for details..

Programming speed

Notes.

  • given values are meassured under all 8 devices together condition
  • this times strongly depend on PC speed, LPT port type and operating system free resources. Therefore values of two different PC configuration are given for comparison.
Device Operation Time A Time B
Temic T89C51RD2-M programming and verify 44 sec. 42 sec.
ICSI IS89LV52A programming and verify 10 sec. 9 sec.
Time A conditions: AMD Athlon 700MHz, 256MB RAM, ECP MB LPT, WinXP.
Time B conditions: Intel P4 2GHz, 256MB RAM, ECP MB LPT, WinXP.

General

PC system requirements

  • Common, software related requirements
  • Programmer hardware related requirements:
    • one (parallel) printer port with nothing attached, the IEEE 1284 compatible printer port (ECP/EPP) on PCI bus recommended

Operation

  • power supply: from JetProg programmer (use adapter included with module)
  • dimensions 275x135x20 mm (10.8"x5.3"x0.78") without submodules, 275x135x33 mm (10.8"x5.3"x1.29") with MCS51-DIL40-2-1 submodules attached. The connectors haven't influence to programmer&module height.
  • weight (without external adapter) 750g
  • temperature 5°..40°C
  • humidity 20%..80%, non condensing

Base configuration package includes

  • Common multiprogramming module no.1
  • Family and ZIF socket submodules - according to order (4x)
  • switching power supply adapter 100-240VAC/15VDC/1A
  • user manual (on CD)
  • registration card
  • software
  • transport case

Additional services

  • Keep Current - Elnec sends to user the latest version of programmer software and updated user documentation (Keep-Current package)
  • AlgOR (Algorithms On Request) - add new supported devices at the customer's request

Programmer price also includes

The information in this document is subject to change without notice.

🍪
