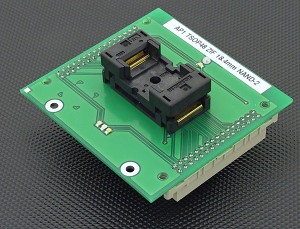

AP1 TSOP48 ZIF 18.4mm NAND-2
(Ord. no. 71-2316)

See: Module manual | Accepted package(s) | Usable for programmer(s) | List of supported devices

WARNING: AP1 TSOP48 ZIF 18.4mm NAND-2 [71-2316] is discontinued product! Please go to discontinued products section to find the replacement.

  • 71-2316

  • special programming module assigned for NAND flash devices with special supply scheme, e.g. Toshiba TC58NVG5T2ETA00, TH58NVG5D2ETA20 and similar, in TSOP48 package
  • operating (mechanical) life of ZIF socket - 10,000 actuations
  • made in Slovakia
Ord. no. 71-2316
Socket ZIF TSOP48, OpenTop type
Bottom 2 female connectors, 32 pin, DIN41612 B/2
Class Specialized
Subclass Memory (NOR/NAND/eMMC)
Module manual
  • Unscrew 2 knurled thumb screws. Properly insert programming module to the Programming Module Interface. Due to connectors shape, only one orientation and position programming module in Programming Module Interface is possible. Screw 2 knurled thumb screws to fix programming module to programmer.
  • Push the top of programming module ZIF socket to open it. Insert the device into them. The right position of the programmed device in programming module ZIF socket is show at picture near (mainly left above) the programming module ZIF socket. Then release programming module ZIF socket.
  • Visually check interconnection between device and programming module ZIF socket. If everything looks OK, the device is ready for programming.
  • Be careful, because the incorrect insertion of programming module to the Programming Module Interface or device to the programming module ZIF socket can damage the programmed device.
  • To take out the device push the top of programming module ZIF socket and remove device from it.
  • When you finish work with programming module, remove it from the Programming Module Interface.
  • Do not directly touch the pins of Programming Module Interface and programming module ZIF socket, because dirt may cause errors during programming of device.
  • For handling with the device we recommended to use a vacuum pick up tool.

Software note
  • If software version, you're using currently, doesn't contain support for this programming module, please download the latest version of software - Regular or OnDemand - from our web site.
