JetProg - multiprogramming system

Discontinued product. Replacement: ELNEC Multiprogramming systems.

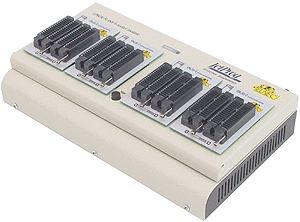

JetProg, EPROM/Flash 8-socket multiprogramming moduleShort description:
  • EPROM/EEPROM/Flash EPROM multiprogramming solution based on the JetProg programmer
  • supports byte-wide EPROM, EEPROM and Flash up to 32 pins
  • programs up to 8 devices simultaneously
  • available submodules for different packages
  • true low voltage support down to 1.8V
  • high throughput
  • comfortable control program, MS Windows (95/98/Me/NT/2000/XP) compatible
  • serialization available

EPROM/EEPROM/Flash EPROM multiprogramming system comprise of

Features

GENERAL
  • The EPROM/Flash 8-socket base module (or Common multiprogramming module no.1 alternatively) with EPROM/Flash socket submodules present - attached to JetProg programmer - high throughput manual operated EPROM/Flash EPROM multiprogramming solution, suitable for medium volume production application.
  • This EPROM/Flash multiprogramming system provides very competitive price but excellent hardware design for reliable programming.
HARDWARE
  • The EPROM/Flash multiprogramming system supports byte-wide EPROM, EEPROM and Flash EPROM up 32 pins and up to 8Mbit size.
  • The replaceable socket submodules package enables different package type support.
  • Optimized advanced pindriver deliver programming performance without overshoot or ground bounce for all memory technologies. Pin drivers operate down to 1.8V so you'll be ready to program the full range of today's advanced low- voltage devices.
  • The EPROM/Flash multiprogramming system performs programming verification at the marginal level of supply voltage, which, obviously, improves programming yield, and guarantees long data retention.
SOFTWARE
  • The EPROM/Flash multiprogramming system is driven by an easy-to-use WIN-95/98/2000/XP compatible control program with pull-down menu, hot keys and on-line help. Selecting of device is performed by its class, by manufacturer or simply by typing a fragment of vendor name and/or part number.
  • Standard device-related commands (read, blank check, program, verify, erase) are boosted by some test functions (insertion test, signature-byte check).
  • All known data formats are supported. Automatic file format detection and conversion during load of file.
  • The rich-featured auto-increment function enables to assign individual serial numbers to each programmed device - or simply increments a serial number, or the function enables to read serial numbers or any programmed device identification signatures from a file.

Technical specification

HARDWARE

Multiprogramming modules

EPROM/Flash 8-socket module

EPROM/Flash 8-socket module

  • EPROM/EEPROM/Flash compatible pindriver (8x)
  • pindrivers are independent, therefore defective chip haven't influence to another programmed chips
  • perfect ground and necessary supply/programming voltage can be applied independently to each socket of module
  • TTL pindriver meet EPROM/EEPROM/Flash requirements
  • current limitation for each socket, overcurrent shutdown, power failure shutdown
  • banana hole for ESD wrist straps
  • insertion test
  • can be upgraded to Common multiprogramming module no.1
  • ord. no.: 70-0104 ( discontinued)
Common multiprogramming module

Common multiprogramming module no.1

  • advanced specialized pindriver (8x), compatible for multiprogramming of more chip types (EPROM/EEPROM, MCS51, PICmicro, ...)
  • pindrivers are independent, therefore defective chip haven't influence to another programmed chips
  • perfect ground and necessary supply/programming voltage can be applied independently to each socket of submodule
  • current limitation for each socket, overcurrent shutdown, power failure shutdown
  • banana hole for ESD wrist straps
  • insertion test
  • ord. no.: 70-0151 ( discontinued)

Programming sockets - submodules

EPROM/Flash-DIL32-2 socket submodule

  • fits for EPROM/Flash in DIL28 and DIL32 packages
  • 2x ZIF DIL32 sockets accepts both 300/600 mil devices
  • operation life of ZIF sockets - 25.000 actuations
  • ord. no.: 70-0105 ( discontinued)

EPROM/Flash-PLCC32-2-DIL32  socket submodule

  • fits for PLCC32 EPROM/Flash, features 32 pins in DIL (27C010 and above, 29C512 and above)
  • 2x ZIF PLCC32 sockets
  • operation life of ZIF sockets - 10.000 actuations
  • ord. no.: 70-0106 ( discontinued)

EPROM/Flash-PLCC32-2-DIL28  socket submodule

  • fits for PLCC32 EPROM/Flash, features 32 pins in DIL (e.g. 27C256, 27C512, 29C256, etc.)
  • 2x ZIF PLCC32 sockets
  • operation life of ZIF sockets - 10.000 actuations
  • ord. no.: 70-0107 ( discontinued)

DEVICE SUPPORT
  • EPROM: NMOS/CMOS 27xxx and 27Cxxx series, with 8 bit data width, full support for LV series
  • EEPROM: NMOS/CMOS, 28xxx, 28Cxxx, 27EExxx series, with 8 bit data width
  • Flash EPROM: 28Fxxx, 29Cxxx, 29Fxxx, 29BVxxx, 29LVxxx, 29Wxxx, 49Fxxx series, with 8 bit data width, full support for LV series

  • List of all supported devices in the case of using EPROM/Flash 8-socket module.
  • List of all supported devices in the case of using Common multiprogramming module no.1 module.

Programming speed

Notes.
  • given values are meassured under all 8 devices together condition
  • this times strongly depend on PC speed, LPT port type and operating system free resources. Therefore values of two different PC configuration are given for comparison.
Device Operation Time A Time B
27C010 programming and verify 43 sec. 28 sec.
AT29C040A programming and verify 55 sec. 40 sec.
AM29F040 programming and verify 98 sec. 86 sec.
Time A conditions: Pentium MMX, 250 MHz, ECP/EPP, WIN98.
Time B conditions: Athlon, 750 MHz, ECP/EPP on PCI bus, WIN98.

SOFTWARE
Screen DIL

Algorithms: only manufacturer approved or certified algorithms are used. Custom algorithms are available at additional cost.
Algorithm updates: software updates are available approx. every 2 weeks, free of charge.
Main features: revision history, session logging, on-line help, device and algorithm information.

Device operations

  • standard:
    • intelligent device selection by device type, manufacturer or typed fragment of part name
    • automatic ID-based selection of EPROM/Flash EPROM
    • blank check, read, verify
    • program
    • erase
    • checksum
  • security
    • insertion test, reverse insertion check
    • ID byte check
  • special
    • auto device serial number increment (serialization)
    • statistic
    • count-down mode

Buffer operations

  • view/edit, find/replace
  • fill/copy, move, byte swap, word/dword split
  • checksum (byte, word)
  • print

File load/save

  • no download time because programmer is PC controlled
  • automatic file type identification
    Supported file formats
    • unformatted (raw) binary
    • HEX: Intel, Intel EXT, Motorola S-record, MOS, Exormax, Tektronix, ASCII-SPACE-HEX
GENERAL

PC system requirements

  • Common, software related requirements
  • Programmer hardware related requirements:
    • one (parallel) printer port with nothing attached, the IEEE 1284 compatible printer port (ECP/EPP) on PCI bus recommended

Operation

  • power supply: from JetProg programmer (use adapter included with module)
  • dimensions 275x135x20 mm (10.8"x5.3"x0.78") without submodules, 275x135x33 mm (10.8"x5.3"x1.29") with EPROM/Flash-DIL32-2 submodules attached. The connectors haven't influence to programmer&module height.
  • weight (without external adapter) 750g
  • temperature 5°..40°C
  • humidity 20%..80%, non condensing

Base configuration package includes

  • EPROM/Flash 8-socket module or (according to order)
  • Common multiprogramming module no.1
  • ZIF socket submodules - according to order (4x)
  • switching power supply adapter 100-240VAC/15VDC/1A
  • user manual (on CD)
  • registration card
  • software
  • transport case

Additional services

  • Keep Current - ELNEC sends to user a latest version of programmer software and updated user documentation (Keep-Current package)
  • AlgOR (Algorithms On Request) - add new supported devices on customer request

Programmer price includes too:

  • free technical support (hot line)
  • free life-time software update via Internet
The information in this document are subject to change without notice.
