SmartProg

Discontinued product. Replacement: SmartProg2.

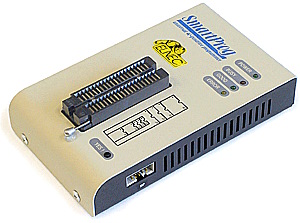

Universal, ISP capable programmer

SmartProg Short description:
  •  29076 supported devices by 3.25 version of SW
  • small, fast and powerful universal programmer
  • DIL40 ZIF socket, devices in DIL package up to 40 pins are supported without adapters
  • connector for in-circuit programming (ISP)
  • connection to PC - parallel (printer) port
  • high-speed IEEE 1284 printer-port interface, up to 1MB/sec. transfer rate
  • comfortable and easy to use control program, Windows 95/98/Me/NT/2000/XP compatible
  • free SW update, download from Internet
  • power supply, cable and software included
  • made in Slovakia
  • warranty - 3 years
  • approved by CE laboratory to meet CE requirements
    CE-sign

Available accessories:


Note: see also SmartProg2 programmer, that have identical features, but USB port connection to PC.

Features

GENERAL
  • SmartProg is the next member of new generation of Windows 95/98/ME/NT/2000/XP based ELNEC universal programmers. Programmer is built to meet the demands of development labs and field engineers for universal, but portable programmer.
  • SmartProg is a small, fast and powerful programmer of all kinds of programmable devices. Using build-in in-circuit serial programming (ISP) connector the programmer is able to program ISP capable chips in-circuit. SmartProg isn't only a programmer, but also a static RAMs tester.
  • Provides very competitive price with excellent hardware design for reliable programming. Nice "value for money" in this class.
  • Very fast programming due to high-speed FPGA driven hardware and support of IEEE1284 (ECP/EPP) high-speed parallel port.
  • SmartProg interfaces with the IBM compatible PC, portable or desktop personal computers through any standard parallel (printer) port (no special interface card needed). Therefore you can take programmer and move it to another PC without assembly/disassembly of PC.
HARDWARE
  • 40 powerful TTL pindrivers provide H/L/pull_up/pull_down and read capability for each pin of socket. Advanced pindrivers incorporate high-quality high-speed circuitry to deliver signals without overshoot or ground bounce for all supported devices. Pin drivers operate down to 1.8V so you'll be ready to program the full range of today's advanced low-voltage devices.
  • The programmer performs device insertion test (wrong device position in socket) and contact check (poor contact pin-to-socket) before it programs each device. These capabilities, supported by signature-byte check help prevent chip damage due to operator error.
  • SmartProg programmer performs programming verification at the marginal level of supply voltage, which, obviously, improves programming yield, and guarantees long data retention.
  • Various socket converters are available to handle device in PLCC, SOIC, SSOP, TSOP, TSSOP, TQFP, QFN (MLF) and other packages.
SOFTWARE
  • Programmer is driven by an easy-to-use control program with pull-down menus, hot keys and on-line help. Selecting of device is performed by its class, by manufacturer or simply by typing a fragment of vendor name and/or part number.
  • Standard device-related commands (read, blank check, program, verify, erase) are enhanced by some test functions (insertion test, signature-byte check), and some special functions (autoincrement).
  • All known data formats are supported. Automatic file format detection and conversion during loading of file.
  • The rich-featured autoincrement function enables one to assign individual serial numbers to each programmed device - or simply increments a serial number, or the function enables one to read serial numbers or any programmed device identification signatures from a file.
  • The software also provide a many information about programmed device. As a special, the drawing of all available packages are provided. The software provide also explanation of chip labelling (the meaning of prefixes and suffixes at the chips) for each supported chip.
  • The software provide a full information for ISP implementation: Description of ISP connector pins for currently selected chip, recommended target design around in-circuit programmed chip and other necessary information.
CARE FOR THE CUSTOMERS
  • It is important to remember that a support most of the new devices requires only a software update due to the SmartProg hardware. With our prompt service you can have a new device added to the list of supported devices within hours! See AlgOR (Algorithm On Request) service for details.
  • Free software updates are available by download from our WEB site.
  • Keep-Current and AlgOR services, our next step towards customer satisfaction.
    • Keep-Current service means, that ELNEC ships the latest version of programmer software and updated user documentation (Keep-Current package) to customer . The Keep-Current service is your hassle-free guarantee that you are doing the highest quality programming on ELNEC programmers, at minimal cost.
    • AlgOR (Algorithm On Request) service gives the user a tool to influence to amount and types of programmed devices as needed.
  • Advanced design of the SmartProg programmer and careful manufacturing and burning allows us to provide a three-year warranty on parts and labor for the programmer (limited 25 000-cycle warranty on ZIF socket).

Specification

HARDWARE

Programmer

  • two D/A converters for VCCP and VPP, controllable rise and fall time
  • VCCP range 2V..7V/350mA
  • VPP range 2V..25V/200mA
  • FPGA based IEEE 1284 slave printer port, up to 1MB/s transfer rate
  • autocalibration
  • selftest capability

ZIF socket, pindriver

  • 40-pin DIL ZIF (Zero Insertion Force) socket accepts both 300/600 mil devices up to 40-pins
  • pindriver: 40 TTL pindrivers, specialized GND/VCC/VPP pindriver
  • FPGA based TTL driver provides H, L, CLK, pull-up, pull-down on all pindriver pins; level H selectable from 1.8V up to 5V
  • continuity test: each pin is tested before every programming operation

ISP connector

  • 10-pin male type with missinsertion lock
  • 5 TTL pindrivers, provides H, L, CLK, pull-up, pull-down; level H selectable from 1.8V up to 5V to handle all (low-voltage including) devices.
  • 1x VCCP voltage (range 2V..7V/100mA) (*1) and 1x VPP voltage (range 2V..25V/50mA)
  • programmed chip voltage (VCCP) with both source/sink capability and voltage sense
  • (*1) - the programmer is not capable to supply a target system from VCCP pin. If you have such demand, use please a BeeProg programmer
DEVICE SUPPORT

Programmer, in ZIF socket

  • EPROM: NMOS/CMOS, 27xxx and 27Cxxx series, with 8/16 bit data width, full support of LV series (*1*2)
  • EEPROM: NMOS/CMOS, 28xxx, 28Cxxx, 27EExxx series, with 8/16 bit data width, full support of LV series (*1*2)
  • Flash EPROM: 28Fxxx, 29Cxxx, 29Fxxx, 29BVxxx, 29LVxxx, 29Wxxx, 49Fxxx series, with 8/16 bit data width, full support of LV series (*1*2)
  • Serial E(E)PROM: 24Cxxx, 24Fxxx, 25Cxxx, 45Dxxx, 59Cxxx, 25Fxxx, 25Pxxx, 85xxx, 93Cxxx, full support for LV series (*1)
  • Configuration (EE)PROM: XCFxxx, 37LVxx, XC17xxxx, EPCxxx, AT17xxx, LV series including
  • NV RAM: Dallas DSxxx, SGS/Inmos MKxxx, SIMTEK STKxxx, XICOR 2xxx, ZMD U63x series
  • PLD: series: Atmel, AMD-Vantis, Cypress, ICT, Lattice, NS, ... (*1)
  • microcontrollers 51 series: 87Cxxx, 87LVxx, 89Cxxx, 89Sxxx, 89LVxxx, LPC series from Atmel, Atmel W&M, Intel, Philips, SST, Winbond (*1*2)
  • microcontrollers Atmel AVR: ATtiny, AT90Sxxx, ATmega series (*1*2)
  • Microcontrollers Cypress: CY8Cxxxxx
  • Microcontrollers ELAN: EM78Pxxx
  • Microcontrollers EM Microelectronic: 4 and 8 bit series
  • microcontrollers Microchip PICmicro: PIC10xxx, PIC12xxx, PIC16xxx, PIC17Cxxx, PIC18xxx, dsPIC series, 8-40 pins (*1*2)
  • microcontrollers Scenix (Ubicom): SXxxx series

Programmer, through ISP connector

  • Serial E(E)PROM: IIC series
  • Microcontrollers Atmel: AT89Sxxx, AT90Sxxxx, ATtiny, ATmega series
  • Microcontrollers Cypress: CY8C2xxxx
  • Microcontrollers Elan: EM78Pxxx
  • Microcontrollers EM Microelectronic: 4 and 8 bit series
  • Microcontrollers Microchip PICmicro: PIC10xxx, PIC12xxx, PIC16xxx, PIC17xxx, PIC18xxx, dsPIC series
  • Microcontrollers Philips: LPC series
Notes:
  • (*1) - suitable adapters are available for non-DIL packages
  • (*2) - there exist only a few adapters for devices with more than 40 pins. Therefore, please, consider a more powerful programmer (LabProg+, BeeProg, JetProg), if you need to program devices with more than 40 pins
  • for all supported devices see actual DEVICE LIST

I.C. Tester

  • Static RAM: 6116 .. 624000

Programming speed

Note: The programming times of the programmer, attached to PC through LPT port, depends a bit on PC speed, LPT port type and operating system free resources. Look at ELNEC programmers, tips to increase of programming speed application note for details.

Device Operation Mode Time
27C010 programming and verify in ZIF 23 sec.
AT29C040A programming and verify in ZIF 32 sec.
AM29F040 programming and verify in ZIF 56 sec.
PIC16C67 programming and verify in ZIF 12 sec.
PIC18F452 programming and verify in ZIF 8 sec.
AT89C52 programming and verify in ZIF 15 sec.
PIC16F876A programming and verify ISP 6 sec.
PIC12C508 programming and verify ISP 4 sec.
Conditions: P4, 2.4 GHz, ECP, Windows XP.

SOFTWARE
Algorithms: only manufacturer approved or certified algorithms are used. Custom algorithms are available at additional cost.

Algorithm updates: software updates are available approx. every 2 weeks, free of charge.

Main features: revision history, session logging, on-line help, device and algorithm information.

Device operations

  • standard:
    • intelligent device selection by device type, manufacturer or typed fragment of part name
    • blank check, read, verify
    • program
    • erase
    • configuration and security bit program
    • illegal bit test
    • checksum
  • security
    • insertion test
    • contact check
    • ID byte check
  • special
    • auto device serial number increment
    • statistic
    • count-down mode

Buffer operations

  • view/edit, find/replace
  • fill, copy, move, byte swap, word/dword split
  • checksum (byte, word)
  • print

File load/save

  • no download time because programmer is PC controlled
  • automatic file type identification

    Supported file formats
    • unformatted (raw) binary
    • HEX: Intel, Intel EXT, Motorola S-record, MOS, Exormax, Tektronix, ASCII-SPACE-HEX
GENERAL

PC system requirements

  • Common, software related requirements
  • Programmer hardware related requirements:
    • one (parallel) printer port with nothing attached, the IEEE 1284 compatible printer port (ECP/EPP) on PCI bus recommended

Operation

  • operating voltage 15..20V DC, max. 0.5A
  • power consumption max. 6W active, about 1.4W sleep
  • dimensions 160x95x35 mm (6.3x3.7x1.4 inch)
  • weight (without external power adapter) ca. 500g (17.65 oz)
  • temperature 5°C ÷ 40°C (41°F ÷ 104°F)
  • humidity 20%..80%, non condensing

Base configuration package includes

  • SmartProg programmer
  • wall plug adapter, 15V/500mA, unstabilized
  • connection cable PC-programmer
  • ISP cable
  • diagnostic POD for selftest of the programmer
  • anti-dust cover for ZIF socket
  • user manual (on CD)
  • software
  • registration card
  • transport case

Additional services

  • Keep Current - ELNEC sends to user the latest version of programmer software and updated user documentation (Keep-Current package)
  • AlgOR (Algorithms On Request) - add new supported devices on customer request

Programmer price also includes

  • free technical support (hot line)
  • free life-time software update via Internet

The information in this document is subject to change without notice.
