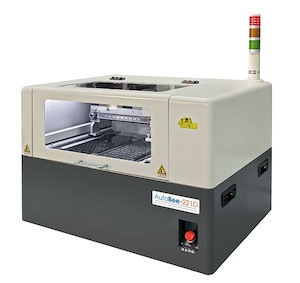

AutoBee-221D (ord.no. 60-00XX)

Features

• AutoBee-221D system power is 100~240V. No need any air facility. Just connect an USB cable to PC, and feed the IC tray, run the operation software. AutoBee-221D satisfy your office and lab automation need.
• AutoBee-221D build in BeeHive204AP programmer x1 which is able to support 4 reliable and outstanding quality programming.
• AutoBee-221D is special design for automatic tray-in/out programming solution. The state-of-art robotics deliver 550/uph at the zero programming time
• AutoBee-221D provides easy-to-learn and easy-to-use software and hardware. The GUI software provides automatic history record function for production management. Moreover, it provides calibration wizard which makes to change package module and calibrate much easier. The hardware is designed for plug-and-play for you easy to reach self-learning



AutoBee-221D specifications

	Throughput	550 U.P.H ( zero programming time)
Transmission System	ZIF pressure force Repeatability Max. Stroke Pick & Place Method	5kg constant X axis ±0.03mm, Y axis ±0.03mm, Z axis ±0.2mm, Bar axis ±0.01mm X axis 400mm, Y axis 310mm, Z axis 18mm, Bar axis 5mm Single Vacuum Nozzles
Position System	Positioning Preprocessor Device Dimensions	Preprocessor 30 x 30mm
Programming System	Resident Programmer Socket Site Device supported File Formats Supported	High Speed Concurrent Programmer 4 programming sites Universal, 140598 supported devices Binary / Machine Code, Intel HEX, TEK HEX, Motorola HEX
Feeding System	Manual Tray-in / out	JEDEC standard
Supported packages	Package size Nozzle size	between 3x3mm (min) and 30x30mm (max) Small for IC packages smaller than 5x5mm Medium for IC packages between 5x5mm and 18.4x12.2mm Large for IC packages 18.4x12.2mm up to 30x30mm
Physical Specifications	Dimensions Net Weight	520(H) x 700(L) x 550(W)/mm 70KG

General

Programmer inside programming automate - BeeHive204AP

Basic specification

• four independent universal programming sites (BeeProg2 based) in one unit
• extremely fast programming, one of the fastest programmers in this category
• comfortable and easy to use control program, work with all versions of MS Windows from Windows XP to Windows 8.1 (32-bit and 64-bit) running at x86/x64 compatible PC
• unique quick reaction to customer's needs - software update can be ready within a day from request by OnDemand software
• made in Slovakia
• warranty - 3 years

PC system requirements

• PC System requirements
  • Operating system: Windows XP to Windows 11 (32-bit and 64-bit)
  • Processor: Core 2 Duo and above
  • Memory: 2GB RAM and above
  • Hard Disk: 1000MB and above, Buffer 4GB and above
  • Interface: USB 2.0 High Speed
  • CDROM drive

Notes:
Free disk space requirements depends also on used IC device size and number of attached programming sites. For large devices the required free space on disk will be approximately 1000MB + 2x Device size x number of programming sites attached to this PC.

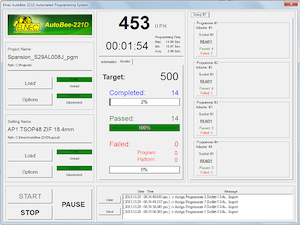

Software

• AutoBee-221D is controlled by: PG4UWAUTO-221D and PG4UWMC applications
• PG4UWAUTO-221D controls the automated machine and is also a master application for desktop automated multiprogramming system
  • operator friendly GUI
  • easy to use


• PG4UWMC controls embeded BeeHive204AP programmer
  • initialized and controlled by master application
  • tracks complex statistical data about performed operations

Operation

• external power supply unit: operating voltage 100-240V AC rated, Single-phase, 3-wires, 50-60 Hz. Output voltage: 15V
• power consumption max. 260W active
• dimensions of AutoBee-221D programmer: 520x700x550 mm ( 20.5 x 27.6 x 21.7 inch).
• weight of AutoBee-221D programmer: 70.0kg (154.32 lb)
• operating temperature: 5°C ÷ 40°C (41°F ÷ 104°F)
• operating humidity: 20%..80%, non condensing

Package includes

• Automated multiprogramming system AutoBee-221D with programmer BeeHive204AP
• AutoBee-221D-I internal pneumatic x1
• BeeHive204AP programmer x1
• AC cable x 1
• USB connection cable PC-programmer (1x)
• diagnostic POD for ZIF socket selftest of the programmer (1x)
• calibration test pod (1x)
• calibration test report
• user manual (both on CD and printed form)
• software CD
• transport case

AutoBee-221D price also include

• free technical support (WebForm/e-mail based)
• free life-time software update via Internet
