Discontinued product! Please go to discontinued products section to find the replacement.

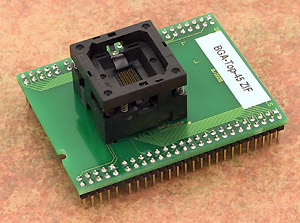

  • top board of BGA adapters
  • ZIF socket accepts many variations of BGA packages, that differ in ball diameter, ball height and body thickness.
  • The picture at Accepted package(s) section shows the range of all dimensions of BGA packages, which are accepted by this BGA-Top board.
  • operating (mechanical) warranty of ZIF socket - 10,000 actuations
  • made in Slovakia
Ord. no. 70-0416
Socket ZIF BGA48 (accept package up to 72 balls), OpenTop type
Bottom 4 rows, 4x 25 pins, square, 0.6x0.6mm
Class BGA
Subclass BGA-Top
70-0416

Adapter manual

  • For work with BGA device it is necessary put together BGA-Top-45 ZIF with some BGA-Bottom-X board according to the information provided by PG4UW software for each particular device (menu Device/ Device info).
  • The top cover must be fully actuated (depressed) before inserting a package into the socket. If the chip is inserted into only partially opened ZIF socket, then - after releasing of top - the tweezer contact might bend and if more times done by this way also tweezer contact can be broken.
  • Once fully actuated, drop the package into the socket from a height of 2 to 3mm above the seating plane.
  • Do not push package while loading or releasing the lid.
  • Do not directly touch the pins of the adapter, because dirt may cause errors during programming of device.
  • The picture show, how to put together the BGA-Top-x ZIF-CS and BGA-Bottom-x boards to have complete BGA adapter.
  • Operation conditions: operating temperature 5°C ÷ 40°C (41°F ÷ 104°F), operating humidity 20%..80%, non condensing.

Software note

  • If software version, you're using currently, doesn't contain support for this programming module, please download the latest version of software - Regular or OnDemand - from our web site.


Accepted package(s)

BGA package Package
Design
NAMESYMBOLMINNOMMAX
ProfileA--1.2
Ball HeightA10.2--
Body ThicknessA20.84-0.94
Ball Diameterb0.250.30.35
Body SizeD-12-
Body SizeE-11-
Ball Pitche-0.8-
Ball Array DGD-12-
Ball Array EGE-8-
NAMESYMBOLMINNOMMAX
ProfileA--1.2
Ball HeightA10.180.230.28
Body ThicknessA20.65--
Ball Diameterb0.270.30.37
Body SizeD11.91212.1
Body SizeE10.91111.1
Ball Pitche-0.8-
Ball Array DGD-12-
Ball Array EGE-8-
NAMESYMBOLMINNOMMAX
ProfileA--1.3
Ball HeightA10.250.30.35
Body ThicknessA20.65--
Ball Diameterb0.350.40.45
Body SizeD11.91212.1
Body SizeE10.91111.1
Ball Pitche-0.8-
Ball Array DGD-12-
Ball Array EGE-8-
🍪
