SEEprog (ord.no. 60-0022)

Discontinued product. Replacement: SmartProg2 device programmer.

Serial EEPROM programmer.

Short description:

  • small and powerful portable programmer of all 8-pins serial EEPROMs
  • supports interfaces IIC (24Cxx), Microwire (93Cxx), SPI (25Cxx)
  • supports programming LV (3.3V) EEPROM
  • comfortable and easy to use control program, work with all versions of MS Windows Windows XP to Windows 11 32-bit and 64-bit*
  • free SW update, download from Internet
  • connection to PC - VIA PRINTER PORT ONLY
  • power supply, cable and SW included
  • made in Slovakia
  • approved by CE laboratory to meet CE requirements

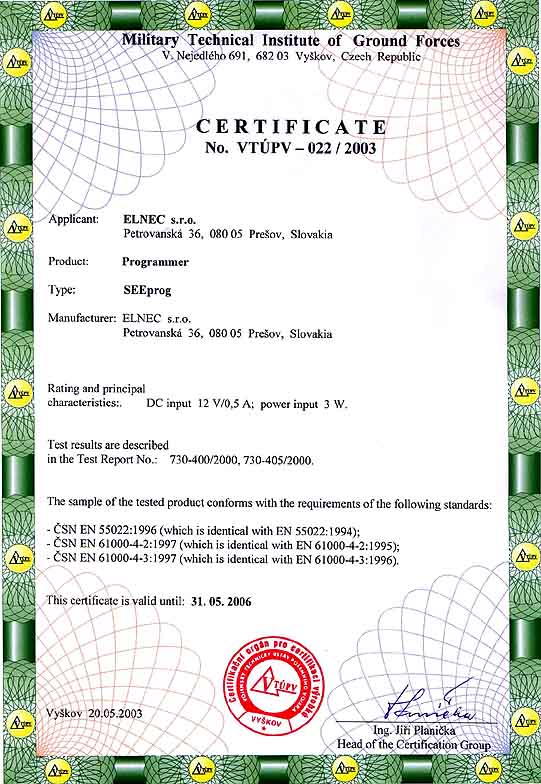

    CE requirements for SEEprog device programmer

Features

  • SEEprog is universal programmer of all types of serial EEPROMs in 8-pin package. SEEprog enables programming EEPROMs with interface types IIC (24Cxx), Microwire (93Cxx) and SPI (25Cxx). Programmer supports programming LV EEPROMs (3.3V). The programmer is equipped by ZIF socket. The quality of programmer is completed by comfortable control program. SEEprog is computer peripheral, it is connecting to PC via standard parallel port.
  • Free software updates are available by download

Specification

Socket and control of pins:

  • ZIF (Zero Insertion Force) DIL socket (300mil wide)
  • each pin is possible to set in position Low and H/Pull-up
  • from each pin is possible to read
  • support of Low Voltage devices

Supported devices:

  • EEPROM I2C (24Cxxx)
  • EEPROM Microwire (93Cxxx)
  • EEPROM SPI (25Cxxx, 25LVxxx, 25Fxxx, 25Pxxx)
  • Configuration (EE)PROM: AT17xxx, LV series including
  • speciall devices (digital thermometers, ...)

Notes:
  • the SEEprog programmer is NOT INTEDED to be a ISP programmer. If you think about ISP, use please the programmers, equipped by ISP connector (SmartProg2, BeeProg+, ...)
  • for all supported devices see actual DEVICE LIST

Device operations

  • standard:
    • blank check
    • read
    • program
    • verify
    • erase
    • configuration and security bit program

  • special:
    • auto device serial number increment

Buffer operations

  • view/edit, find/replace
  • fill/copy, move, byte swap, word/dword split
  • checksum (byte, word)
  • print

Supported file formats

  • unformatted (raw) binary
  • HEX: Intel, Intel EXT, Motorola S, MOS, Exormax, Tektronix, ASCII-SPACE-HEX, Tektronix

General

PC system requirements

Operation

  • operating voltage 8..15V DC, max. 50mA
  • dimensions 137x65x40 mm (5.4x2.6x1.6 inch)
  • weight (without external adapter and connecting cable) ca. 150g (5.295 oz)
  • temperature range: 5°C ÷ 40°C (41°F ÷ 104°F)

Package includes

  • SEEprog programmer
  • wall plug adapter, 12V DC/500mA, unstabilized
  • connection cable PC-programmer
  • software
  • user manual (on CD)
  • transport case (cardboard box)

Additional services

  • Keep Current - Elnec sends to user the latest version of programmer software and updated user documentation (Keep-Current package)
  • AlgOR (Algorithms On Request) - add new supported devices at the customer's request

Programmer price also includes

Notes:
* Microsoft 64-bit operation systems doesn't allow direct access to LPT port, therefore the communication speed between PC and programmer is very low. In case of Windows x64 OS we recommend to use only USB connected programmers.

The information in this document is subject to change without notice.

🍪
