AP1 QFN8-5 ZIF SFlash-1a
(Ord. no. 71-3088)

See: Module manual | Accepted package(s) | Usable for programmer(s) | List of supported devices
  • 71-3088

    Price: US $164.00 [read this!][read this!])
    Price 4-7: US $150.90
    Price 8+ : Ask for price [?]

      View cart

  • special programming module assigned for Serial Flash devices in 8x6mm DFN/MLP/SON/VDFN/VDFPN/WSON packages with 8-pins
  • redesigned version for TurboMode
  • operating (mechanical) warranty of ZIF socket - 5,000 actuations
  • made in Slovakia
Ord. no. 71-3088
Socket ZIF QFN8, OpenTop type
Bottom 2 female connectors, 32 pin, DIN41612 B/2
Class Specialized
Subclass Memory (NOR/NAND/eMMC)
Availability in stock 16This number indicates quantity of items that could be produced from components in stock. Reasonable quantity of this product can be available within 3 working days. pcs. within 3 days
Module manual
  • Unscrew 2 knurled thumb screws. Properly insert programming module to the Programming Module Interface. Due to connectors shape, only one orientation and position programming module in Programming Module Interface is possible. Screw 2 knurled thumb screws to fix programming module to programmer.
  • Push the top of programming module ZIF socket to open it. Insert the device into them. The right position of the programmed device in programming module ZIF socket is show at picture near (mainly left above) the programming module ZIF socket. Then release programming module ZIF socket.
  • Visually check interconnection between device and programming module ZIF socket. If everything looks OK, the device is ready for programming.
  • Be careful, because the incorrect insertion of programming module to the Programming Module Interface or device to the programming module ZIF socket can damage the programmed device.
  • To take out the device push the top of programming module ZIF socket and remove device from it.
  • When you finish work with programming module, remove it from the Programming Module Interface.
  • Do not directly touch the pins of Programming Module Interface and programming module ZIF socket, because dirt may cause errors during programming of device.
  • For handling with the device we recommended to use a vacuum pick up tool.

Software note
  • If software version, you're using currently, doesn't contain support for this programming module, please download the latest version of software - Regular or OnDemand - from our web site.

Accepted package(s)

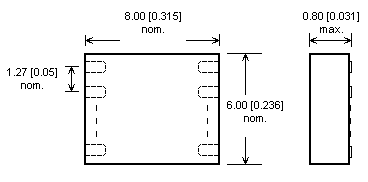

QFN8 Package
Design

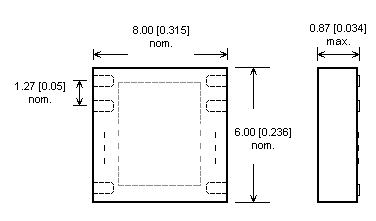

WSON8 Package
Design

Usable for programmer(s):
BeeHive204AP BeeHive204AP-AU BeeProg2AP



This number indicates quantity of items that could be produced from components in stock. Reasonable quantity of this product can be available within 3 working days.
We are sorry, that the item is not in stock at the moment. Please ask for availability, click here.
