DIL42/SDIP42 ZIF 600mil
(Ord. no. 70-0142)

See: Adapter manual | Accepted package(s) | Usable for programmer(s) | List of supported devices
  • 70-0142
    Move the cursor over the picture for additional view.

    Price: US $224.00 [read this!][read this!])
    Price 4-7: US $206.10
    Price 8+ : Ask for price [?]

      View cart

  • universal adapter, assigned for devices in SDIP42/PSDIP42 package (for example NEC uPD78Fxxx series, STM ST7xxx series, Novatek NT68xxx series, Motorola/Freescale Semic. HC08 series)
  • operation (mechanical) life of ZIF socket - 20.000 actuations
  • made in Slovakia
Ord. no. 70-0142
Socket ZIF SDIP42
Bottom 2 rows, 2x 21 pins, square, 0.6x0.6mm, rows spacing 600mil
Class Universal
Subclass DIL/SDIP
Availability in stock 9 pcs. [other 38 pcs. This number indicates quantity of items that could be produced from components in stock. Reasonable quantity of this product can be available within 3 working days. within 3 days]
Adapter manual
  • Insert adapter to the device programmer ZIF socket according to the picture placed near of it. If you have some doubts about orientation of this adapter in device programmer ZIF socket, it is valid general rule, the orientation of the text of title is the same as the text on the top of the device programmer.
  • Open the adapter ZIF socket by lever (lever is at upper position). Insert the device into it according to the picture placed near of it and close adapter ZIF socket by lever (lever is at lower position). If you use thisadapter for devices with less than 42 pins, then place device to the bottom edge of adapter ZIF socket. Upper contacts stay unconnected.
  • Visually check interconnection between device and adapter ZIF socket. If everything looks OK, the device is ready for programming.
  • Be careful, because the incorrect insertion of adapter to the device programmer ZIF socket or device to the adapter ZIF socket can damage the programmed device.
  • To take out the device open the adapter ZIF socket by lever (lever is at upper position) and remove device from it.
  • When you finish work with adapter, remove it from the device programmer ZIF socket.
  • Do not directly touch the pins of the adapter and adapter ZIF socket, because dirt may cause errors during programming of device.
  • If programming yields isn't 100% when using programming adapter or if some unreliability appears, try to connect one 22nF-100nF multilayer capacitor (that meet the EIA X7R or Z5U specification) between leads of adapter connected to pins VCC and GND pins of programmed chip.

Software note
  • If software version, you're using currently, doesn't contain support for this programming adapter, please download the latest version of software - Regular or OnDemand - from our web site.

Accepted package(s)

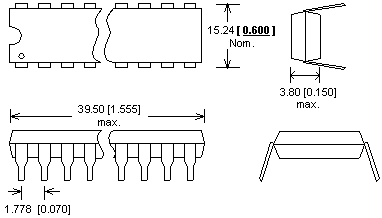

SDIP42 Package
Design

Usable for programmer(s):
BeeHive208S BeeHive204 BeeProg2 BeeProg2C BeeProg+ BeeHive8S BeeHive4+ BeeHive4
BeeProg JetProg (DIL48, ISP)
