Elnec fully understand needs of customers programming high volumes for which cost of adapters is one of most important component of costs. Therefore Elnec policy is to offer:
- fixed discount when buying 4+ adapters of particular type,
- individual discount for quantities 8+ according to type of adapter and demanded quantity. To get Quotation 8+ please click here: Ask for price
- universal programming adapter for devices in FlatPack package (e.g. Atmel AT28C256-FM/883)
- operating (mechanical) warranty of ZIF socket - 10,000 actuations
- supported from PG4UW software version 2.97
- made in Slovakia
|
| Ord. no. | 70-1419 |
| Socket | ZIF FlatPack51 |
| Bottom | 2x24 pins, square, 0.6x0.6mm, rows spacing 600mil |
| Class | Universal |
| Subclass | Memory (NOR/NAND/eMMC) |
| Availability in stock | 0 We are sorry, that the item is not in stock at the moment. Please ask for availability, click here.pcs. [other 6 pcs.
This number indicates quantity of items that could be produced from components in stock. Reasonable quantity of this product can be available within 3 working days. within 3 working days] |
Adapter manual
- Protect the contacts of adapter connectors and ZIF socket from contamination. Any dirt and/or fat on contacts may cause errors during programming.
- Usage of vacuum pick-up tool is expected for device handling.
- Proceed with care! Incorrect insertion of adapter in programmer ZIF socket or device in adapter ZIF socket may lead to programmed device damage.
- Insert adapter into programmer ZIF socket. If you are in doubts about orientation of the adapter in programmer ZIF socket, there is a rule of thumb - orientation of adapter name text is the same as orientation of the text on the top of programmer.
- Visually check the placement of adapter in programmer ZIF socket.
- Insert the device into adapter ZIF socket. Correct position of programmed device in adapter ZIF socket is indicated by picture near (usually on left above) the adapter ZIF socket. On that picture, reference corner of device (e.g. position of pin 1) is indicated by dot, by number 1, by bevelled corner or by any combination of mentioned. Then close adapter ZIF socket by rotating lever clockwise.
- Visually check the placement of programmed device in adapter ZIF socket. If everything looks OK, the device is ready for programming.
- To take out the device from adapter, rotate the lever counterclockwise and remove the device.
- When you finish the work with adapter, remove it from programmer ZIF socket.
- Operating conditions: temperature 5°C ÷ 40°C (41°F ÷ 104°F), humidity 20% ÷ 80% non-condensing.
Software note
- If software version, you're using currently, doesn't contain support for this programming adapter, please download the latest version of software - Regular or OnDemand - from our web site.

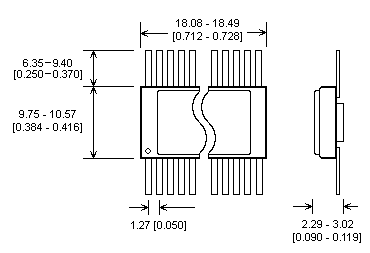

Accepted package(s)
Usable for programmer(s):
Note: This programming adapter / module may not support all devices in the package(s) mentioned above on your programmer. Please, verify situation for particular device(s) you are going to work with using actual Device list of your programmer.
