  • specialized programming adapter for Espressif ESP32-S2-WROOM module
  • operating (mechanical) warranty of ZIF socket - 10,000 actuations
  • supported from PG4UW software version 3.85k
  • made in Slovakia
Ord. no. 70-6564
Socket ZIF QFN15, ClamShell type
Bottom 2x24 pins, square, 0.6x0.6mm, rows spacing 600mil
Class Specialized
Subclass Espressif
Availability in stock
1 pcs.
[
other 1 pcs.

This number indicates quantity of items that could be produced from components in stock. Reasonable quantity of this product can be available within 3 working days.

within 3 working days ]

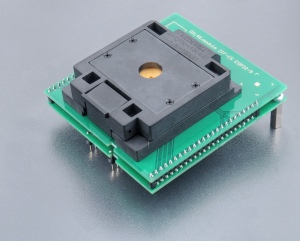

70-6564 Move the cursor over the picture for additional view.

Unit pricing strongly depends on quantity:

Price 1 pc : US $1518.00

Price 2 pcs: US $996.60

Price 3 pcs: US $831.60

show more

Price 4 pcs: US $733.30

Price 5 pcs: US $683.80

Price 6 pcs: US $650.80

Price 7 pcs: US $627.20

Price 8+ : Ask for price

View cart

Adapter manual

  • Protect the contacts of adapter connectors and ZIF socket from contamination. Any dirt and/or fat on contacts may cause errors during programming.
  • Usage of vacuum pick-up tool is expected for device handling.
  • Proceed with care! Incorrect insertion of adapter in programmer ZIF socket or device in adapter ZIF socket may lead to programmed device damage.
  • Insert adapter into programmer ZIF socket. If you are in doubts about orientation of the adapter in programmer ZIF socket, there is a rule of thumb - orientation of adapter name text is the same as orientation of the text on the top of programmer.
  • Visually check the placement of adapter in programmer ZIF socket.
  • Release the pawl on adapter ZIF socket to open it. The socket cap will open by spring force. Insert the device into adapter ZIF socket. Correct position of programmed device in adapter ZIF socket is indicated by picture near (usually on left above) the adapter ZIF socket. On that picture, reference corner of device (e.g. position of pin 1) is indicated by dot, by number 1, by bevelled corner or by any combination of mentioned.
  • Visually check the placement of programmed device in adapter ZIF socket. If it looks OK, close adapter ZIF socket cap by hand and secure the pawl.
  • To take out the device from adapter, release the pawl on adapter ZIF socket and remove the device.
  • When you finish the work with adapter, remove it from programmer ZIF socket.
  • Operating conditions: temperature 5°C ÷ 40°C (41°F ÷ 104°F), humidity 20% ÷ 80% non-condensing.

Software note

  • If software version, you're using currently, doesn't contain support for this programming module, please download the latest version of software - Regular or OnDemand - from our web site.
