Discontinued product! Please go to discontinued products section to find the replacement.

  • specialized adapter for STMicroelectronics STM32 devices in UFQFPN28 package
  • operating (mechanical) warranty of ZIF socket - 500,000 actuations
  • supported from PG4UW software version 3.10n
  • made in Slovakia
Ord. no. 70-3325
Socket ZIF QFN28, ClamShell type
Bottom 2x24 pins, square, 0.6x0.6mm, rows spacing 600mil
Class Specialized
Subclass ST MCU

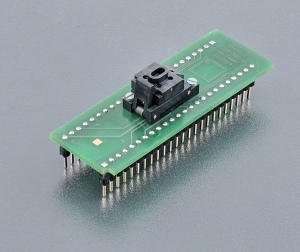

70-3325 Move the cursor over the picture for additional view.

Adapter manual

  • Protect the contacts of adapter connectors and ZIF socket from contamination. Any dirt and/or fat on contacts may cause errors during programming.
  • Usage of vacuum pick-up tool is expected for device handling.
  • Proceed with care! Incorrect insertion of adapter in programmer ZIF socket or device in adapter ZIF socket may lead to programmed device damage.
  • Insert adapter into programmer ZIF socket. If you are in doubts about orientation of the adapter in programmer ZIF socket, there is a rule of thumb - orientation of adapter name text is the same as orientation of the text on the top of programmer.
  • Visually check the placement of adapter in programmer ZIF socket.
  • Release the pawl on adapter ZIF socket to open it. The socket cap will open by spring force. Insert the device into adapter ZIF socket. Correct position of programmed device in adapter ZIF socket is indicated by picture near (usually on left above) the adapter ZIF socket. On that picture, reference corner of device (e.g. position of pin 1) is indicated by dot, by number 1, by bevelled corner or by any combination of mentioned.
  • Visually check the placement of programmed device in adapter ZIF socket. If it looks OK, close adapter ZIF socket cap by hand and secure the pawl.
  • To take out the device from adapter, release the pawl on adapter ZIF socket and remove the device.
  • When you finish the work with adapter, remove it from programmer ZIF socket.
  • Operating conditions: temperature 5°C ÷ 40°C (41°F ÷ 104°F), humidity 20% ÷ 80% non-condensing.

Software note

  • If software version, you're using currently, doesn't contain support for this programming module, please download the latest version of software - Regular or OnDemand - from our web site.


Accepted package(s)

UFQFPN28 Package
