  • universal module, assigned for ISP programming devices with one wire for communication, i.e. STM8
  • NOTE: in case of programming adapter identify error, please use PG4UW software version 3.82 and newer (see application note AN-IDX)
Ord. no. 70-1286
Socket -
Bottom -
Class Specialized
Subclass ISP/ICP
Availability in stock
16 pcs.
[
other 68 pcs.

This number indicates quantity of items that could be produced from components in stock. Reasonable quantity of this product can be available within 3 working days.

within 3 working days ]
70-1286

Price: US $105.00 [read this!]

Price 2-3: US $99.80

Price 4-7: US $96.60

Price 8+ : Ask for price [?]

Elnec fully understand needs of customers programming high volumes for which cost of adapters is one of most important component of costs. Therefore Elnec policy is to offer:

    1. fixed discount when buying 4+ adapters of particular type,

    2. individual discount for quantities 8+ according to type of adapter and        demanded quantity. To get Quotation 8+ please click here: Ask for price

We are sorry but your territory is covered by our sole distributor. Contact please the distributor for your country - listed in our web site.

View cart

Adapter manual

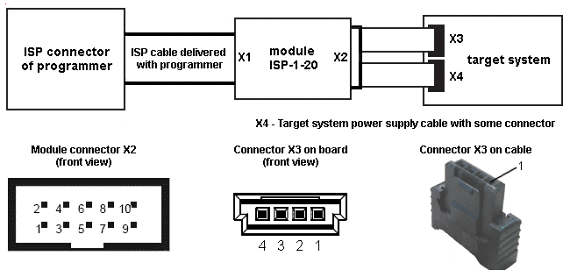

  • Connect module with programmer and target system according to the picture at bottom page.
  • Package also contain cable with ERNI connector, to connect to target system.
  • Description of module ISP-1-20 connector pins (X2):
  •   1 - Target VCC check only
  •   2 - communication pin - for example SWIM
  •   3 - GND (VSS)
  •   4 - Reset
  •   5 - GND (VSS)
  •   6 - GND (VSS)
  •   7 - GND (VSS)
  •   8 - GND (VSS)
  •   9 - Target system power supply *1
  •   10 - Target system power supply *1
  • Descrition of communication pins (X3):
  •   1 - Target VCC check only
  •   2 - communication pin
  •   3 - GND (VSS)
  •   4 - Reset
  • X4 - connector applied by user, meanig of wires on the flat cable:
  •   wire #1 (marked): Target system power supply (positive pole)
  •   wire #2: Target system power supply (positive pole)
  •   wire #3: GND (VSS)
  •   wire #4: GND (VSS)
  • Notes:
  • *1 Programmer can provide a power supply for the target system.

Software note

  • If software version, you're using currently, doesn't contain support for this module, please download the latest version of software - Regular or OnDemand - from our web site.


Connection details

module ISP-1-20connection to the programmer Package
Design

Usable for programmer(s):

BeeHive208S BeeHive204 BeeHive204AP BeeProg2 BeeProg2AP BeeProg2C
🍪
